Bench Mounted Fume Cupboards
Bench Mounted Fume Cupboards are an essential piece of laboratory equipment used for a variety of applications. These cupboards are designed to protect the user and their surrounding environment from harmful fumes and vapours generated during laboratory experiments. The cupboard is designed to sit on top of a bench and has a fan unit that pulls air from the workspace and exhausts it through a ventilation system, ensuring that any harmful chemicals or fumes are safely removed from the area.
Bench Mounted Fume Cupboards come in various models and sizes to suit the requirements of different laboratories. They are made from robust materials such as stainless steel and toughened glass, which ensures they are easy to clean and maintain. These fume cupboards can be customized to meet specific laboratory requirements, including the integration of laboratory equipment and the provision of additional storage space.
Manufactured to UK Standards BS-EN-14175
Specification
- Radius designed intake profile giving excellent airflow characteristics and containment results.
- Twin skin carcase in 16 swg zintec coated mild steel with epoxy powder coated finish.
- Aerodynamically designed sill in 316 grade stainless steel.
- Sash in 6mm thick toughened glass with full width aerodynamic finger grip.
- Sprung loaded guide channels to give the sash a smooth operation and excellent stability.
- Counter balanced sash with twin stainless steel cables running in pulleys for smooth movement.
- Fail safe sash mechanism to prevent rapid decent.
- Sash lock mechanism with automatic re-setting feature.
- Adjustable internal baffle to assist with balancing and even airflow distribution.
- Light box mounted externally out of airflow.
- Electrical and mechanical services mounted on removable service plates for service and maintenance.
- Fume cupboards and extractors are both pre-wired and pre-plumbed to ensure minimum site installation time.
Internal Lining & Worktops
- Internal linings and worktops are chosen for their suitability for the chemicals and processes used.
Materials include:
- High pressure solid grade laminate.
- Stainless steel, one piece monolithic chambers or bolted panels.
- PVC/Polypropylene.
- Toughened glass.
- Epoxy coated steel
- Ceramic.
- Width 1200mm, 1500mm, 1800mm & 2000mm Internal working width (External width less 300mm)
- Depth 900mm Internal working depth 610mm
- Height 1200mm Internal working height 1080mm
Fume cupboards can be manufactured to clients’ own dimensional requirements including extra width, depth and internal height
Optional Extras & Services
- Alarm/control panels.
- Water front controls & outlets, i.e. cold water, hot water, steam.

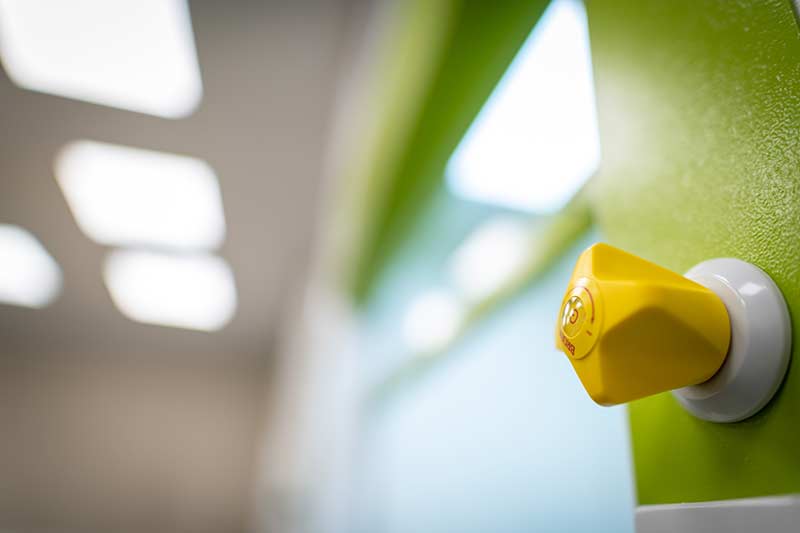

- Gas front controls & outlets, i.e. nitrogen, compressed air, natural gas, vacuum, hydrogen.
- Electrical socket outlets, i.e. single, double, RCD protected, spark proof.
- Waste outlets, i.e. circular drip cups, oval drip cups, sinks, troughs,
- bottle traps.
- Support frames.
- Acid and/or solvent storage cupboards, in mild steel or timber, with or without extraction.
- Infill panels to ceiling height with by-pass grilles.
- Automatic fire extinguishers c/w flame detection unit.
If you are interested in our Industrial Bench Mounted Cupboards please feel free to message using the contact form or alternatively call Fumetec on 0161 727 8880.
