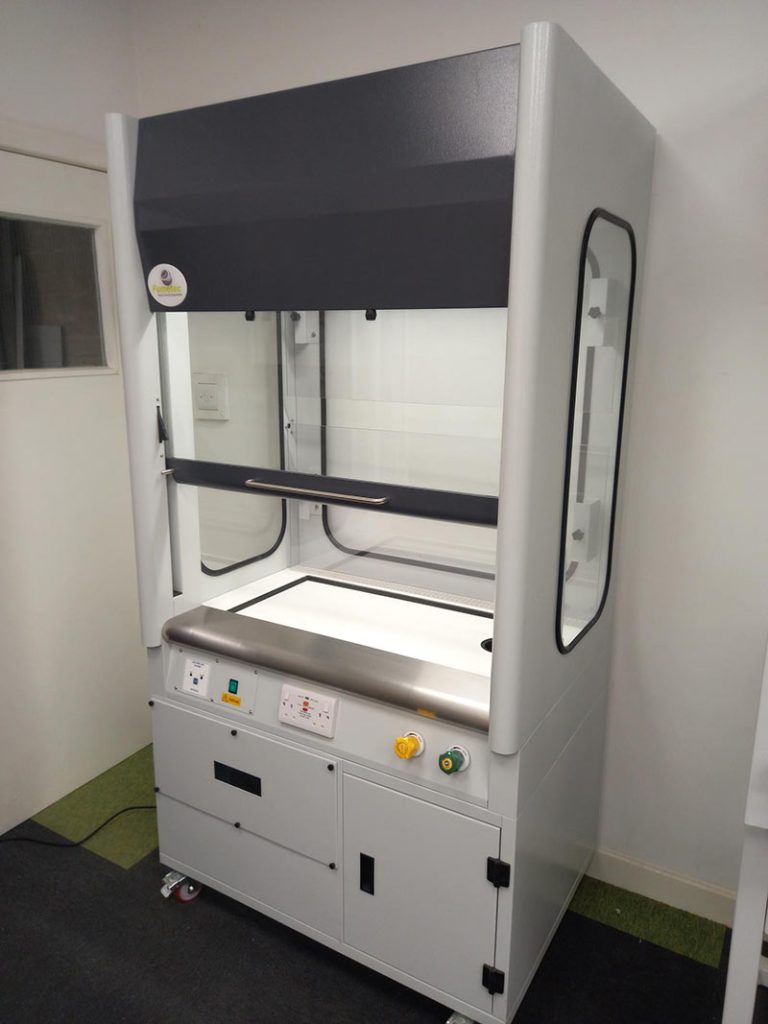

Schools Mobile Carbon Filtered Fume Cupboards
Schools Mobile Carbon Filtered Fume Cupboards are designed to provide a safe and effective laboratory environment for students, teachers and lab personnel. These specialized fume cupboards utilise advanced filtration technologies and are equipped with carbon filters to effectively capture and remove harmful fumes, vapors and particulates generated during scientific experiments and research processes.
The mobility of these cupboards gives schools the flexibility to move them around the laboratory, wherever they are needed. The cabinets themselves are constructed from high-quality materials, ensuring maximum durability and performance. Utilizing these fume cupboards provides a sustainable solution for educational institutions, as it eliminates the need for costly ducting and ventilation systems, making them a more cost-effective option.
Overall, the Schools Mobile Carbon Filtered Fume Cupboards are an essential component in promoting a safe and healthy learning environment in laboratories, while addressing air quality and environmental concerns.
Robust Fume Cupboards designed & manufactured for primary use in schools and colleges
Specification
- Radius designed intake profile giving excellent airflow characteristics and containment results.
- Single skin carcase in 16 swg zintec coated mild steel with epoxy powder coated finish.
- Aerodynamically designed sill in 316 grade stainless steel.
- Sash in 6mm thick toughened glass with full width aerodynamic finger grip.
- Sprung loaded guide channels to give the sash a smooth operation and excellent stability.
- Counter balanced sash with twin stainless steel cables running in pulleys for smooth movement.
- Fail safe sash mechanism to prevent rapid decent.
- Sash lock mechanism with automatic re-setting feature.
- Adjustable internal baffle to assist with balancing and even airflow distribution.
- Light box mounted externally out of airflow.
- Services are mounted on either the support frame fascia or on a plinth if bench mounted.
- Fume cupboards are pre-wired and pre-plumbed to ensure minimum site installation time.
Dimentions
- Width 1200mm, 1500mm, 1800mm & 2000mm Internal working width (External width less 300mm)
- Depth 900mm Internal working depth 610mm
- Height 1200mm Internal working height 1080mm
Materials include:
- High pressure solid grade laminate.
- One piece trespa worktop
- Toughened glass.
- Epoxy coated steel
- General Purpose Carbon Filter
Education fume cupboards can be manufactured to clients’ own dimensional requirements including extra width, depth and internal height.

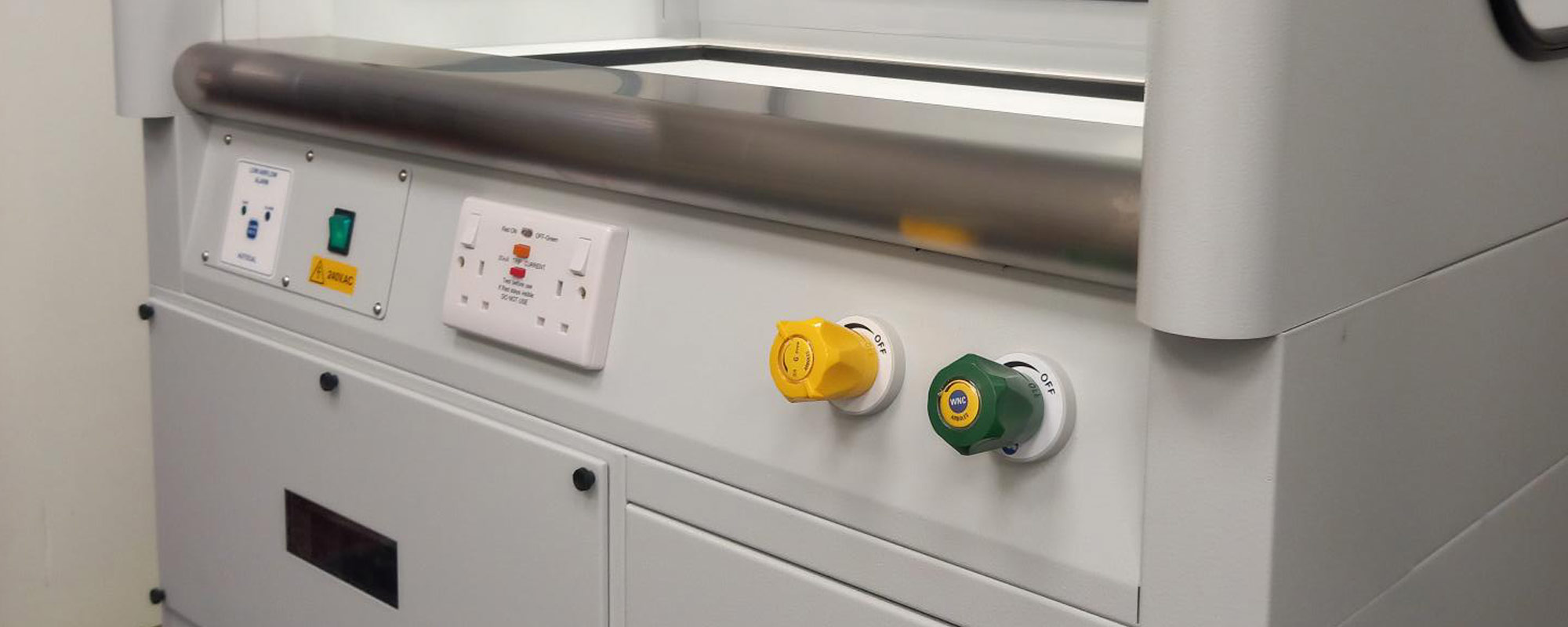

Standard Services:
- Worktop in solid grade laminate with marine edging.
- Double 13amp RCD switched socket.
- Internal light with switch.
- Gas service outlet.
- Water service outlet.
- Drip cup.
- Fan on/off switch with indicator.
- Airflow indicator panel.
Manufactured and Tested to:
- BS 7258.
- Building Bulletin 88.
- Design Note 29.
- CLEAPSS.
Optional Extras
- Service Docking Stations - Bench recessed or wall mounted
