Polypropylene Fume Cupboards
Polypropylene Fume Cupboards
- Radius designed intake profile giving excellent airflow characteristics and containment results.
- Twin skinned carcass manufactured in 9mm polypropylene.
- Aerodynamically designed sill in Polypropylene
- Sash in 6mm thick polycarbonate with full width aerodynamic finger grip.
- Sprung loaded guide channels to give the sash a smooth operation and excellent stability.
- Counter balanced sash with twin stainless-steel cables running in pulleys for smooth movement.
- Fail safe sash mechanism to prevent rapid decent.
- Sash lock mechanism with automatic re-setting feature.
- Adjustable internal baffle to assist with balancing and even airflow distribution.
- Light box mounted externally out of airflow.
- Electrical and mechanical services mounted on removable service plates for service and maintenance.
- Fume cupboards are both pre-wired and pre-plumbed to ensure minimum site installation time.
Internal Lining & Worktops
Materials include:
- 9mm Polypropylene.
Optional Extras & Services

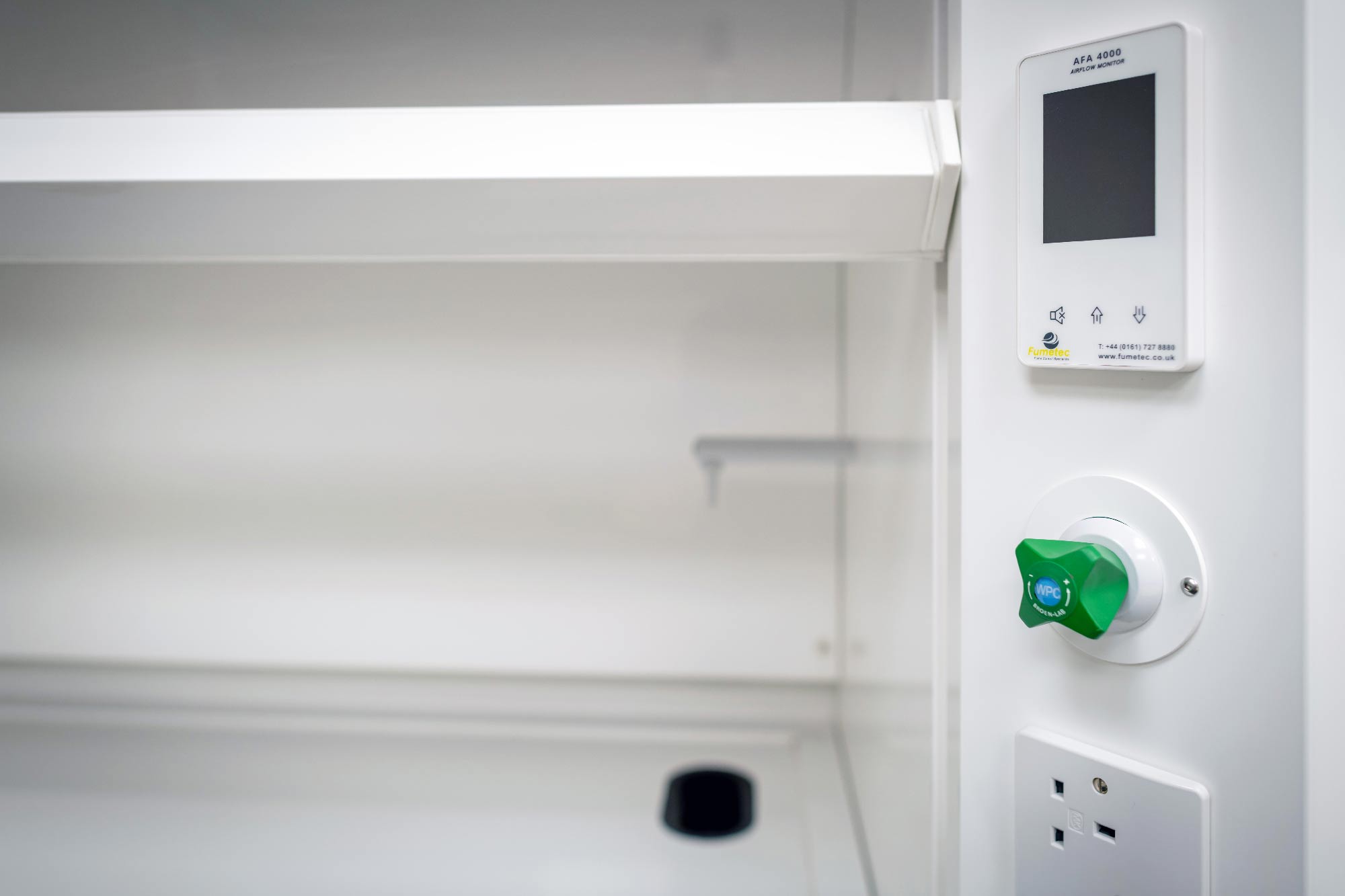

- Alarm/control panels.
- Water front controls & outlets, i.e. cold water, hot water, steam.
- Gas front controls & outlets, i.e. nitrogen, compressed air, natural gas, vacuum, hydrogen.
- Electrical socket outlets, i.e. single, double, RCD protected, spark proof.
- Waste outlets, i.e. circular drip cups, oval drip cups, sinks, troughs,
bottle traps. - Polypropylene (steel reinforced) support frames.
- Acid and/or solvent storage cupboards, in 9mm polypropylene and vented (if applicable)

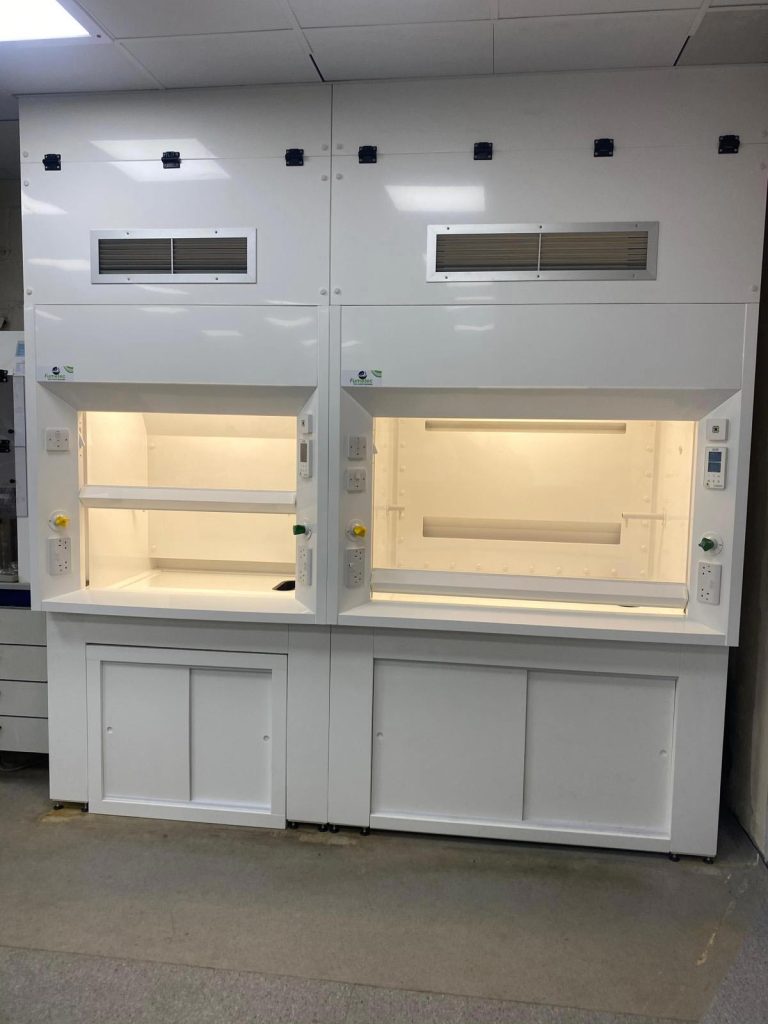

- Infill panels to ceiling height with by-pass grilles.
Manufactured to UK Standards – BS EN 14175
For general laboratory use. For mounting on support frames or customer’s own bench/worktop.
- Width 1200mm, 1500mm, 1800mm & 2000mm
Internal working width
(External width less 300mm) - Depth 900mm
Internal working depth 610mm - Height 1200mm
Internal working height 1080mm
Bespoke fume cupboards can be manufactured to clients’ own dimensional requirements including extra width, depth and internal height.
