Carbon Filter Cupboards

carbon filtered cupboards

Carbon Filtered Cupboards


  • Radius designed intake profile giving excellent airflow characteristics and containment results.
  • Twin skinned carcase in 16 swg zintec coated mild steel with epoxy powder coated finish.
  • Aerodynamically designed sill in 316 grade stainless steel.
  • Sash in 6mm thick toughened glass with full width aerodynamic finger grip.
  • Sprung loaded guide channels to give the sash a smooth operation and excellent stability.
  • Counter balanced sash with twin stainless steel cables running in pulleys for smooth movement.
  • Fail safe sash mechanism to prevent rapid decent.
  • Sash lock mechanism with automatic re-setting feature.
  • Adjustable internal baffle to assist with balancing and even airflow distribution.
  • Light box mounted externally out of airflow.
  • Electrical and mechanical services mounted on removable service plates for service and maintenance.
  • Fume cupboards are both pre-wired and pre-plumbed to ensure minimum site installation time.
Internal Lining & Worktops

Internal linings and worktops are chosen for their suitability for the chemicals and processes used.

Materials include:
  • High pressure solid grade laminate.
  • One piece moulded cast epoxy.
  • Stainless steel, one piece monolithic chambers or bolted panels.
  • PVC/Polypropylene.
  • Toughened glass.
  • Epoxy coated steel or aluminium.
Optional Extras & Services
  • Alarm/control panels.
  • Water front controls & outlets, i.e. cold water, hot water, steam.
  • Gas front controls & outlets, i.e. nitrogen, compressed air, natural gas, vacuum, hydrogen.
  • Electrical socket outlets, i.e. single, double, RCD protected, spark proof.
  • Waste outlets, i.e. circular drip cups, oval drip cups, sinks, troughs,
    bottle traps.
  • Support frames.
  • Acid and/or solvent storage cupboards, in mild steel or timber, with or
    without extraction.
  • Infil panels to ceiling height with by-pass grilles.
  • Automatic fire extinguishers c/w flame detection unit

Manufactured to BS 7989:2001

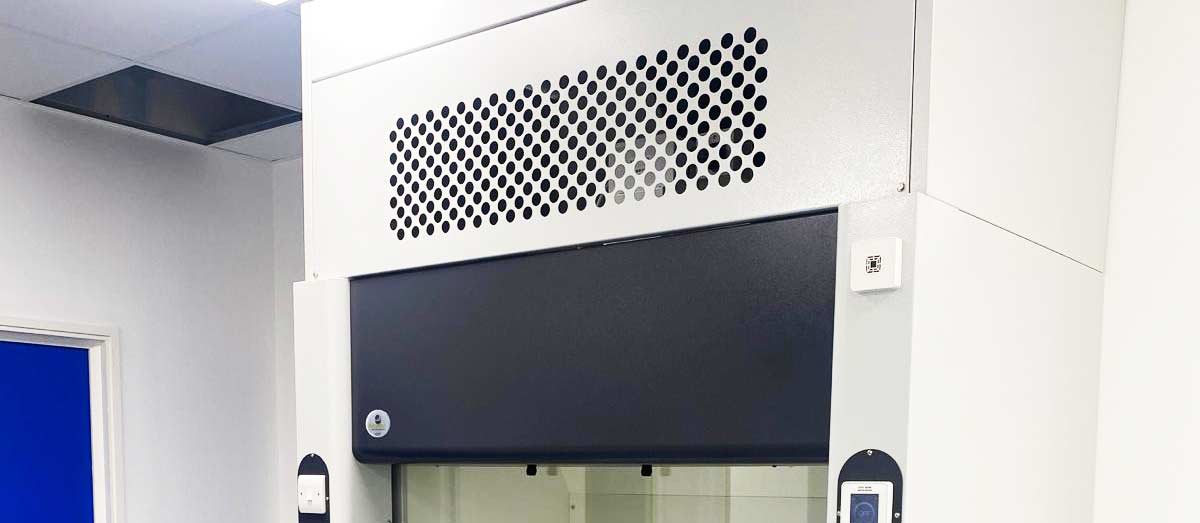

Carbon filtered fume cupboards are normally used where exhaust to atmosphere is not necessary or possible.

These fume cupboards can be supplied in Standard or Walk-in configuration, and can be fitted with either HEPA filters or with safe change systems. The cupboards can be converted to fully extracted systems at a later date for minimal costs.

  • Width 1200mm, 1500mm, 1800mm & 2000mm
    Internal working width
    (External width less 300mm)
  • Depth 900mm
    Internal working depth 610mm
  • Height 1200mm
    Internal working height 1080mm
Carbon Filtered fume cupboards can be manufactured to clients’ own dimensional requirements including extra width, depth and internal height.
